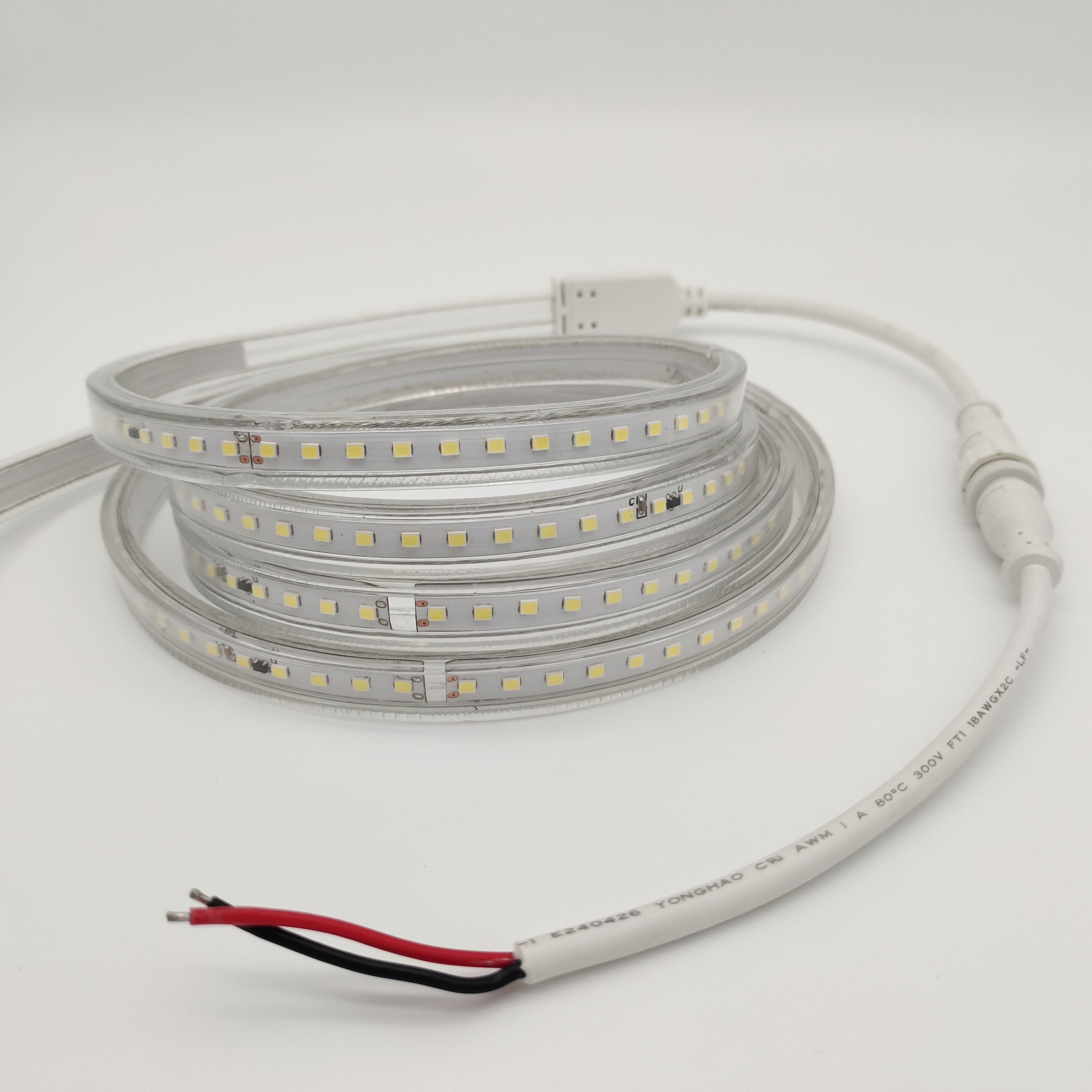

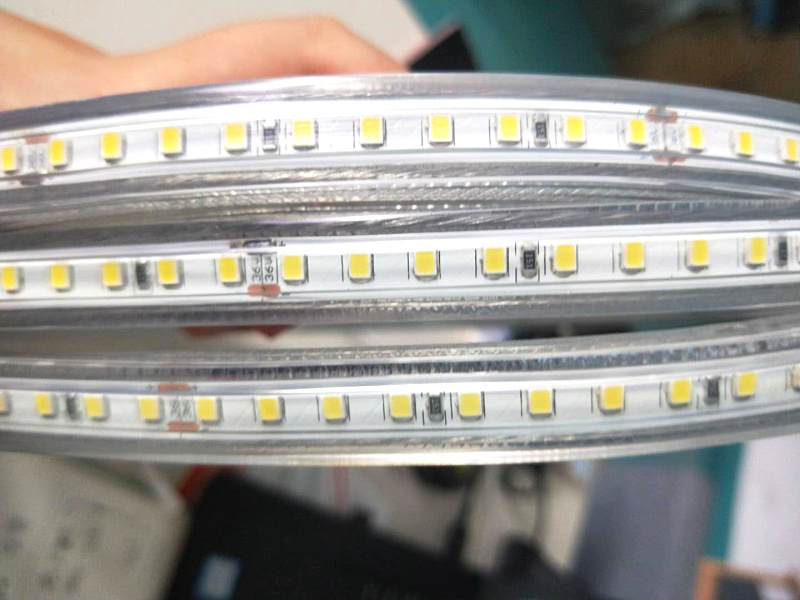

AC36V flexible LED strip SMD2835 120LED mining lighting

1. Easy to install.

2. No pressure drop.

3. PVC extrusion process, two moldings, protection grade IP65, high safety factor, can be used indoors and outdoors.

4. Flexible light strip, no restrictions on curved corners.

5. Environmentally friendly rubber, UV-proof and fire-proof.

6. Passed CE, Rohs certification.

Request a quote

Enter your details and submit

We'll aim to get back to your with a quote within 24hrs

Detailed information
Specification

※ Product accessories: tail plug, Fixed buckle, middle indirect

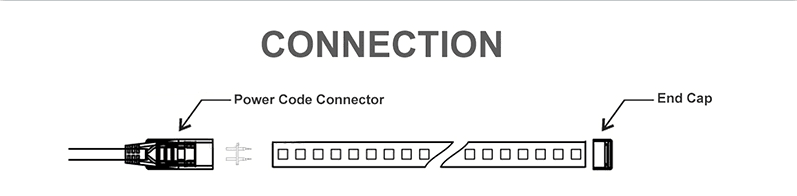

※ Product schematic diagram:

※ Instructions for use:

※ Product packaging diagram:

One roll of 50 meters, one roll one box. Carton size: 33.5*33.5*11.5 Material: K=K

One roll of 100 meters, one roll of one box. Carton size: 33.5*33.5*20 Material: K=K

Name	2835 flexible strip
NO.		LE-SX120-36V-2835
Material	PVC+Line+FPCB
Size		13*7mm
Beam angle	120°
LED Model	SMD 2835
LED number		120D
Luminous flux	24-26LM
LED Colour	3000K/4000K/6000K/R/G/B/Y/P
LED Power	0.2W/LED
PCB Width		8mm
PCB thickness	1 ounce 35 mm
Power		10w±1w
voltage	36V
Cuttable length	0.5m
Waterproofing	IP65
Packing	50m/R
Packing size		33.533.511.5
G.W.		6KG
Accessories	Power cord, End Cap， Mounting Clip(suggest need 1pc for a 0.5M)
